Washbot helps you choose a model, checks your site and handles installation, commissioning and ongoing service.
Automatic washing with water and cleaning products. No brushes.
The range includes CL100, CL200, CL300, CL500, CL600 and CL800. All six share the same basic construction and number of wash programmes. They differ in pressure levels, the number of cleaning products, built-in drying and additional features.
Choose according to the space available and the programmes you want to offer. If you do not yet know the bay dimensions, browse the models and send us the site details you have.
Entry-level model
CL100 is the entry-level model in the series. It washes at low pressure, uses one cleaning product and offers four programmes. It has no built-in dryers.
Washing, wax treatment and drying
CL200 operates at low pressure and uses two cleaning products, including one for a wax treatment. It offers four programmes and has four built-in dryers to complete the cycle.
First model with high pressure
CL300 is the first model in the series with high pressure. It uses three cleaning products and includes chassis and wheel rim washing, intensive front and rear washing and four built-in dryers.
Compact model with five cleaning products
CL500 is a compact model for sites with limited installation space. It includes chassis and wheel rim washing, intensive front and rear washing and remote control. Your quote specifies the side dryers and other optional equipment.
Separate water and foam lines
CL600 has separate water and foam lines, five cleaning products and three pressure levels. It includes chassis and wheel rim washing and intensive front and rear washing. Your quote specifies the side dryers, additional crossbeam and other optional equipment.
Horizontal arm movement
CL800 combines automatic vehicle width detection with horizontal arm movement. It includes intensive washing around the side mirrors. Your quote specifies the side dryers, additional crossbeam and other optional equipment.

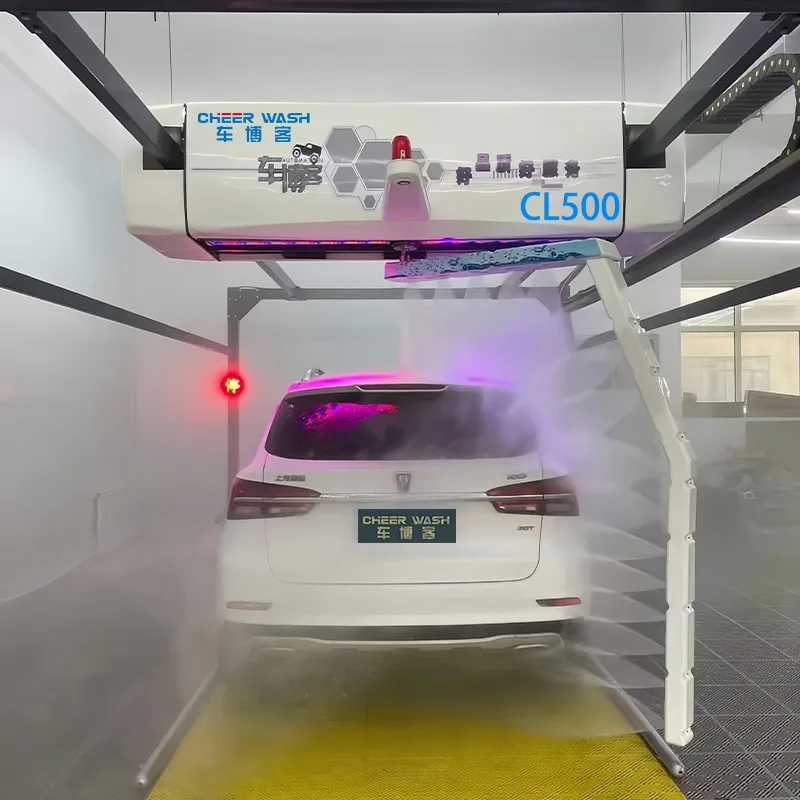

The car enters the wash bay and stays in place. Three-dimensional sensors detect the shape of the body, and the machine moves the nozzles around it according to the selected programme. Water and cleaning products wash the car without brushes.
The motor and drive are inside the machine. It moves along a guide belt, with no drive mechanism in the bay floor.
The sensors detect the shape of the car and determine how the arm moves around it.
The first pass removes larger deposits of dirt. On models with chassis and wheel rim washing, it also covers those areas.

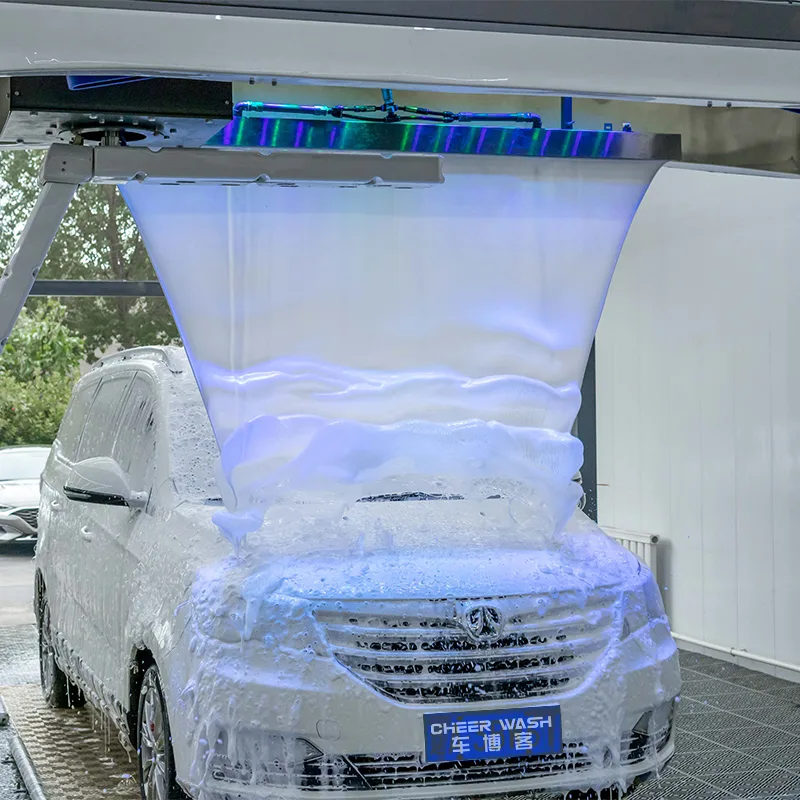

The machine applies cleaning products according to the programme. The number of products depends on the model.

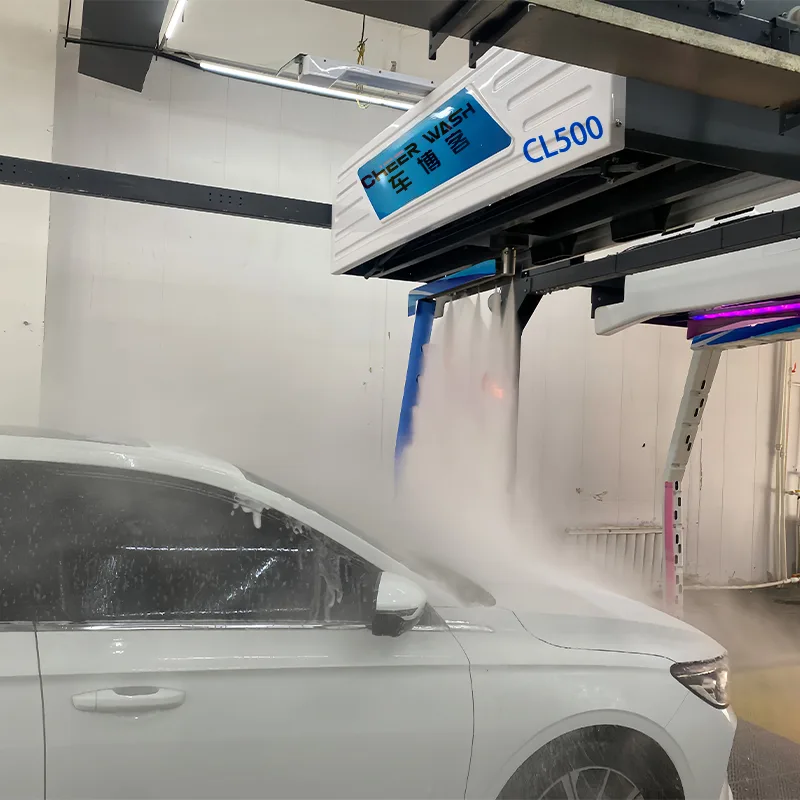

The machine sprays water under pressure. The available pressure levels depend on the model.
The machine rinses the car, including the roof and sills.
On models with built-in dryers, the airflow removes water from the bodywork.
The steps in each programme depend on the model. Pressure levels, the number of cleaning products and built-in drying vary across the range.
Compare pressure levels, the number of cleaning products, built-in dryers and warranty cover for each model.
| Parameter | CL100 | CL200 | CL300 | CL500 | CL600 | CL800 |
|---|---|---|---|---|---|---|
| Pressure levels | Low | Low | Low and high | Low, medium and high | Low, medium and high | Low, medium and high |
| Number of cleaning products | 1 | 2 | 3 | 5 | 5 | 5 |
| Built-in dryers | No | 4 | 4 | 4 built-in dryers; side dryers are specified in your quote. | 4 built-in dryers; side dryers are specified in your quote. | 4 built-in dryers; side dryers are specified in your quote. |
| Whole-machine warranty | 1 year | 1 year | 1 year | 3 years | 3 years | 3 years |
Plan for routine checks, cleaning, product refills and preventive maintenance at the site. Include ongoing water and electricity costs in your budget.
Installation and commissioning take 1–3 weeks after the site is prepared.
The wash bay dimensions depend on the model and equipment. Side dryers and an additional crossbeam affect the space required.
| Model and configuration | Standard installation without an additional crossbeam | Maximum vehicle dimensions |
|---|---|---|
| CL100Standard configuration | 6.80 × 3.65 × 3.00 m | 5.60 × 2.60 × 2.00 m |
| CL200Standard configuration | 6.80 × 3.65 × 3.00 m | 5.60 × 2.60 × 2.00 m |
| CL300Standard configuration | 6.80 × 3.65 × 3.00 m | 5.60 × 2.60 × 2.00 m |
| CL500Standard configuration | Confirm at the site survey | Confirm at the site survey |
| CL600with side dryers | 6.80 × 4.73 × 3.15 m | 5.60 × 2.60 × 2.00 m |
| CL600without side dryers | 6.80 × 3.73 × 3.15 m | 5.60 × 2.60 × 2.00 m |
| CL800with side dryers | 7.75 × 4.70 × 3.30 m | 5.60 × 2.60 × 2.00 m |
| CL800without side dryers | 7.75 × 3.90 × 3.30 m | 5.60 × 2.60 × 2.00 m |
For CL500, the dimensions are confirmed at the site survey.
These dimensions are a guide for planning. We confirm the final installation requirements at the site survey, based on the model, equipment and site structure.
The machine requires a three-phase 380 V supply. The connected load depends on the model and configuration and is confirmed at the site survey.
We confirm the water supply, tank and drainage requirements at the site survey, based on your site.
If you have a technical problem, we respond and start remote diagnostics within the same working day. If a technician needs to visit, we confirm the timing after diagnostics, based on the site location and the parts needed.
We keep spare parts in stock in Bulgaria. If a rarer or major component is needed, Washbot arranges its delivery and the repair.
The warranty covers the whole machine: 1 year for CL100, CL200 and CL300, and 3 years for CL500, CL600 and CL800. Contact Washbot for spare parts and repairs in Bulgaria.
The machines are made by Shenyang Cheer Wash. The company reports two production facilities with a combined area of 30,000 m² and more than 7,000 machines in operation worldwide.
Washbot handles supply and installation in Bulgaria. Contact us for service, spare parts and repairs.
